Puma

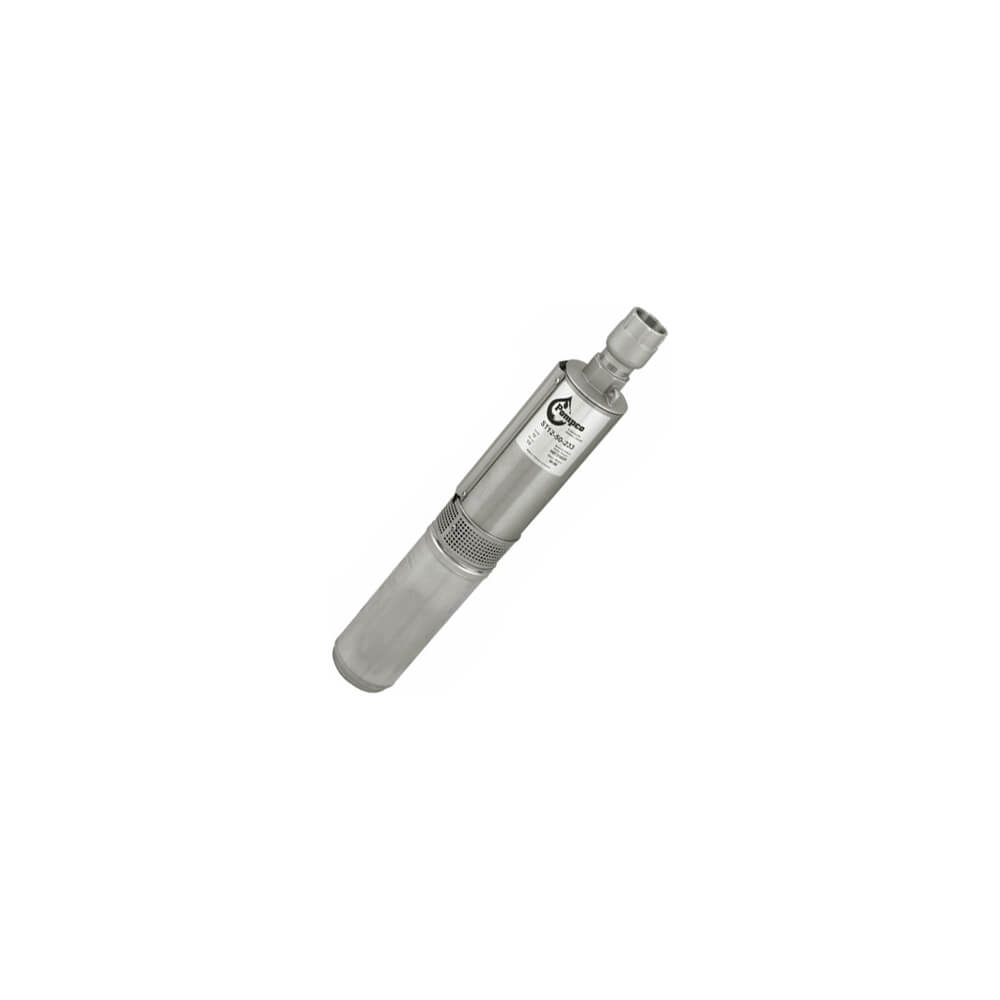

Submersible pump 12 GS15 575P

item code: 425-5260

The GS series are built with such precision output for many years. These submersible pumps are also built to work under tough conditions even in abrasive water.

$1,283.00 YOU PAY

Product details

The GS series are built with such precision output for many years. These submersible pumps are also built to work under tough conditions even in abrasive water.

Check valve - External check valve made of stainless steel Discharge head & Motor bracket

  • Made of (304) stainless steel.
  • Shaft-Hexagonal shaft made of (303) stainless steel for corrosion and wear resistance
  • -Made of stainless steel and fit perfectly to any 4standard motor which allows maximum efficientcy.
  • Diffuser-Injection molded in Naryl.
  • Washer-Made of stainless steel, they prevent wearing of the impellers and diffusers.
  • Impeller-Injection molded in Polycarbonate.
  • Disc-Made of stainless steel.
  • Top bearing-Injection molded in Polypropylene plus fibers, with a rubber centre for an even more precise alignment of the shaft. The rubber center considerably reduces wearinq of the shaft caused by sand.
  • Sceen-Made of stainless steel, it prevents the impellers from large debris obstructions.
  • Cable guard-Made of stainless steel, corrosion resistant, protects motor lead
  • Housing-Made of (T-304) stainless steel, it is threaded for easy maintenance.
  • Motor- Pentek
  • Warning-These pumps are very high pressure. A pressure valve must be installed on the tank to avoid possible danger of the tank bursting, causing property damage and/or personal injury or death
  • Fasteners-All stainless steel fasteners
  • Capacity 12gpm
  • 19
  • 3 phase
  • 575
  • 1 1/2 HP
  • Width 6"
  • Depth 4"
  • Control box included ONLY with 3 wire motors available voltage 200-230-380-460-575 volts 1/3 HP motor pump available on request.

5 years from date of manufacture
